IN STOCK: CRYSTALS
Crystals | Oscillators
| No. | Product Model | Product Photo | Datasheet | Description | CEC Part Number | Frequency (MHz) | Load | Make Tolerance and Temp Stability | Resistance (Ohms) |

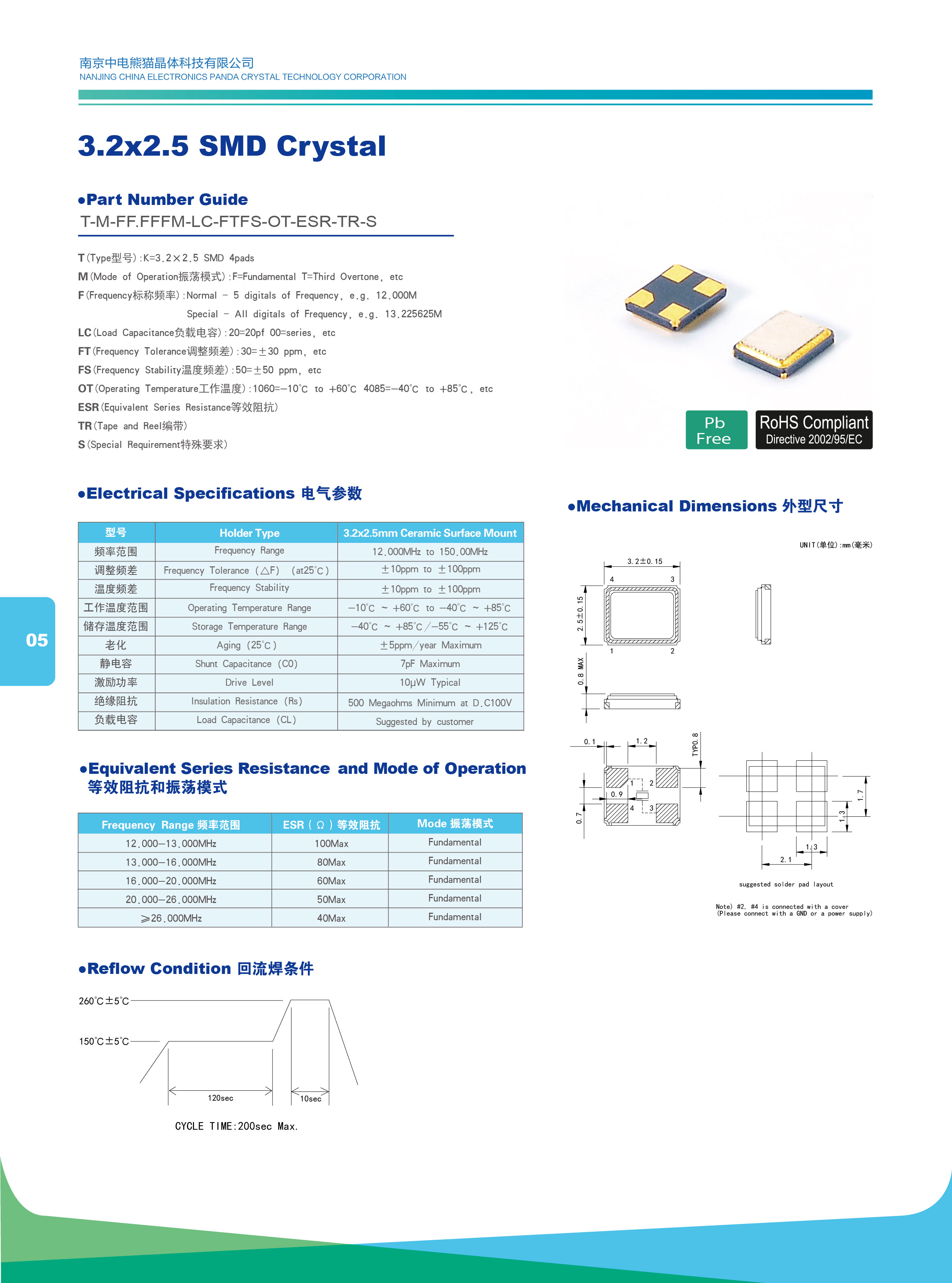

| 1 | K 3225 | |
|
Crystal, 12 MHz, 16pF, SMD | K-F-12.000M-16-2020-2070-100 | 12 | 16pF | 20ppm/20ppm(-20~70) | 100 |
| 2 | K 3225 | Crystal, 12.288 MHz, 10pF, SMD | K-F-12.288M-10-1010-2075-100 | 12.288 | 10pF | 10ppm/10ppm(-20~75) | 100 | ||
| 3 | K 3225 | Crystal, 16MHz, 12pF, SMD | K-F-16.000M-12-1010-2070-80 | 16 | 12pF | 10ppm/10ppm(-20~70) | 80 | ||
| 4 | K 3225 | Crystal, 20 MHz, 12pF, SMD | K-F-20.000M-12-1010-2070-60 | 20 | 12pF | 10ppm/10ppm(-20~70) | 60 | ||
| 5 | K 3225 | Crystal, 20.376 MHz, 10pF, SMD | K-F-20.736M-10-1010-1060-70 | 20.736 | 10pF | 10ppm/10ppm(-10~60) | 70 | ||
| 6 | K 3225 | Crystal, 22.1184 MHz, 15pF, SMD | K-F-22.1184M-15-2020-2070-60 | 22.1184 | 15pF | 20ppm/20ppm(-20~70) | 60 | ||
| 7 | K 3225 | Crystal, 24 MHz, 9pF, SMD | K-F-24.000M-9-2020-2070-50 | 24 | 9pF | 20ppm/20ppm(-20~70) | 50 | ||
| 8 | K 3225 | Crystal, 25 MHz, 15pF, SMD | K-F-25.000M-10-3030-2070-50 | 25 | 10pF | 30ppm/30ppm(-20~70) | 50 | ||
| 9 | K 3225 | Crystal, 26 MHz, 9pF, SMD | K-F-26.000M-9-1010-2070-50 | 26 | 9pF | 10ppm/10ppm(-20~70) | 50 | ||
| 10 | K 3225 | Crystal, 27 MHz, 12pF, SMD | K-F-27.000M-12-1010-2070-40 | 27 | 12pF | 10ppm/10ppm(-20~70) | 40 | ||
| 11 | K 3225 | Crystal, 32 MHz, 12pF, SMD | K-F-32.000M-12-1010-2070-40 | 32 | 12pF | 10ppm/10ppm(-20~70) | 40 | ||
| 12 | K 3225 | Crystal, 40 MHz, 15pF, SMD | K-F-40.000M-15-1010-2070-40 | 40 | 15pF | 10ppm/10ppm(-20~70) | 40 | ||
| 13 | K 3225 | Crystal, 48 MHz, 12pF, SMD | K-F-48.000M-12-2020-2070-40 | 48 | 12pF | 20ppm/20ppm(-20~70) | 40 | ||

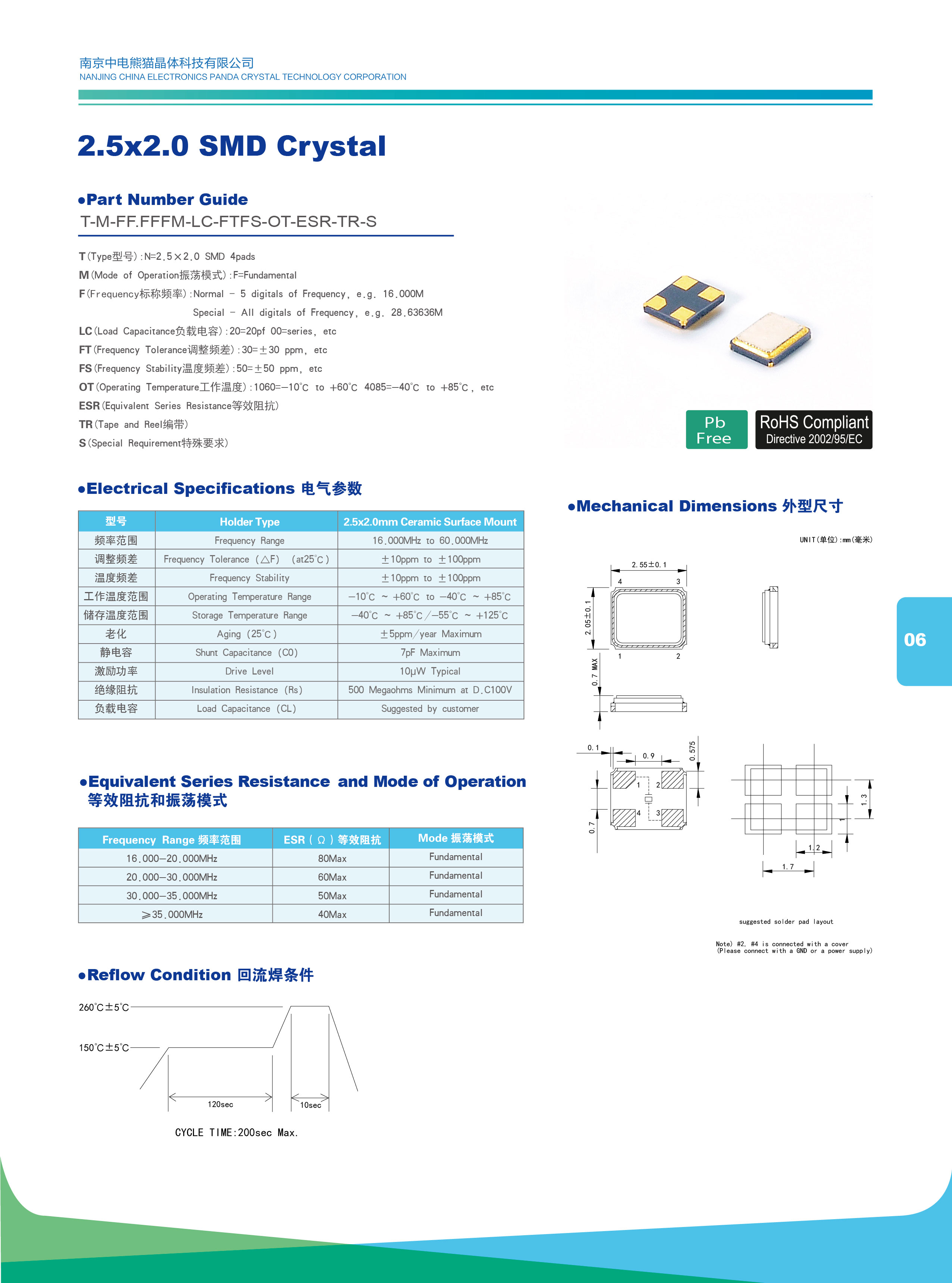

| 14 | N 2520 | |
|
Crystal, 12 MHz, 20pF, SMD | N-F-12.000M-20-3030-2070-150 | 12 | 20pF | 30ppm/30ppm(-20~70) | 150 |
| 15 | N 2520 | Crystal, 16 MHz, 10pF, SMD | N-F-16.000M-10-1010-2070-80 | 16 | 10pF | 10ppm/10ppm(-20~70) | 80 | ||
| 16 | N 2520 | Crystal, 24 MHz, 8pF, SMD | N-F-24.000M-8-2020-2070-60 | 24 | 8pF | 20ppm/20ppm(-20~70) | 60 | ||
| 17 | N 2520 | Crystal, 25 MHz, 20pF, SMD | N-F-25.000M-20-3030-2070-60 | 25 | 20pF | 30ppm/30ppm(-20~70) | 60 | ||
| 18 | N 2520 | Crystal, 26 MHz, 12pF, SMD | N-F-26.000M-12-1010-2070-60 | 26 | 12pF | 10ppm/10ppm(-20~70) | 60 | ||
| 19 | N 2520 | Crystal, 28.224 MHz, 20pF, SMD | N-F-28.224M-20-2020-2070-60 | 28.224 | 20pF | 20ppm/20ppm(-20~70) | 60 | ||
| 20 | N 2520 | Crystal, 30 MHz, 10pF, SMD | N-F-30.000M-10-2020-2070-50 | 30 | 10pF | 20ppm/20ppm(-20~70) | 50 | ||
| 21 | N 2520 | Crystal, 32MHz, 8pF, SMD | N-F-32.000M-8-1010-2070-50 | 32 | 8pF | 10ppm/10ppm(-20~70) | 50 | ||
| 22 | N 2520 | Crystal, 50 MHz, 10pF, SMD | N-F-50.000M-10-1018-4085-40 | 50 | 10pF | 10ppm/18ppm(-40~85) | 40 | ||

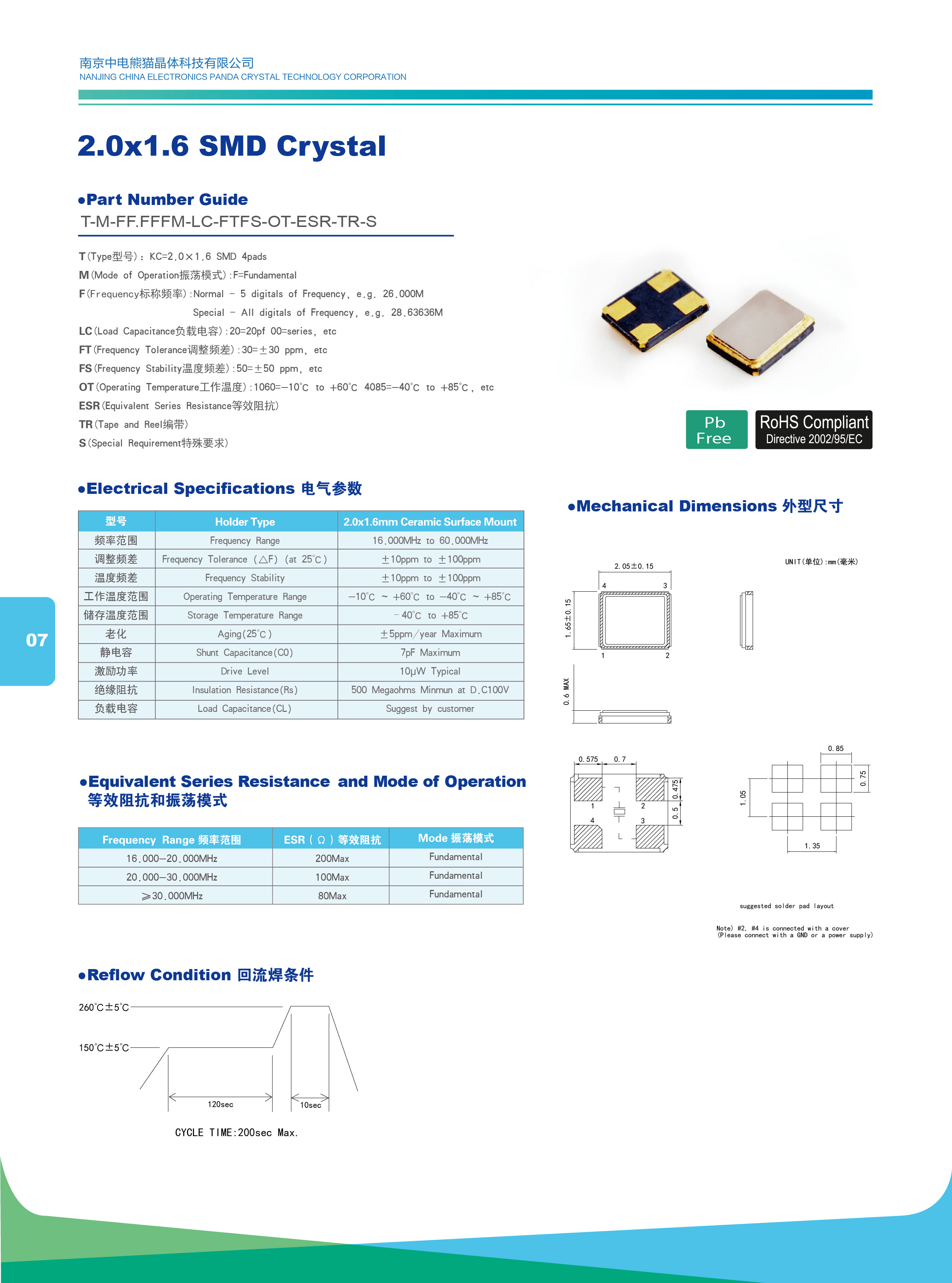

| 23 | KC 2016 | |
|
Crystal, 26 MHz, 9pF, SMD | KC-F-26.000M-9-1010-2070-100 | 26 | 9pF | 10ppm/10ppm(-20~70) | 100 |
| 24 | KC 2016 | Crystal, 50MHz, 20pF, SMD | KC-F-50.000M-20-3030-4085-80 | 50 | 20pF | 30ppm/30ppm(-40~85) | 80 | ||

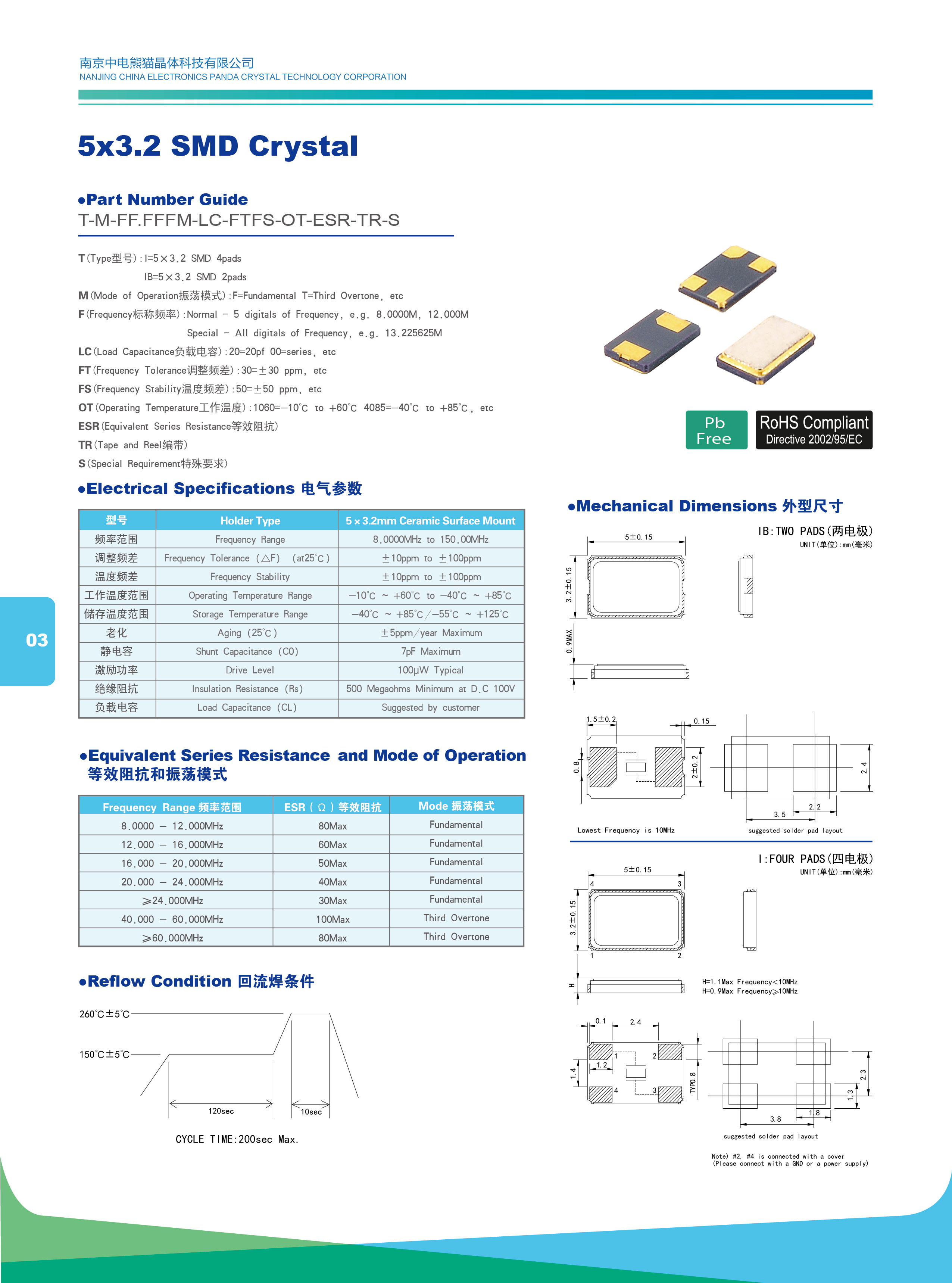

| 25 | I 5032 | |
|
Crystal, 8MHz, 18pF, SMD | I-F-8.0000M-18-3030-2070-100 | 8 | 18pF | 30ppm/30ppm(-20~70) | 100 |
| 26 | I 5032 | Crystal, 10 MHz, 18pF, SMD | I-F-10.000M-18-3030-2070-80 | 10 | 18pF | 30ppm/30ppm(-20~70) | 80 | ||
| 27 | I 5032 | Crystal, 12 MHz, 18pF, SMD | I-F-12.000M-18-2020-2070-50 | 12 | 18pF | 20ppm/20ppm(-20~70) | 50 | ||
| 28 | I 5032 | Crystal, 12 MHz, 20pF, SMD | I-F-12.000M-20-50100-4085-50 | 12 | 20pF | 50ppm/100ppm(-40~85) | 50 | ||
| 29 | I 5032 | Crystal, 14.318181MHz, 12pF, SMD | I-F-14.318181M-12-1030-2070-50 | 14.318181 | 12pF | 10ppm/30ppm(-20~70) | 50 | ||
| 30 | I 5032 | Crystal, 16MHz, 20pF, SMD | I-F-16.000M-20-2020-1070-50 | 16 | 20pF | 20ppm/20ppm(-10~70) | 50 | ||
| 31 | I 5032 | Crystal, 18.432MHz, 20pF, SMD | I-F-18.432M-20-2020-2070-50 | 18.432 | 20pF | 20ppm/20ppm(-20~70) | 50 | ||
| 32 | I 5032 | Crystal, 20MHz, 18pF, SMD | I-F-20.000M-18-1030-2070-40 | 20 | 18pF | 10ppm/30ppm(-20~70) | 40 | ||
| 33 | I 5032 | Crystal, 20 MHz, 20pF, SMD | I-F-20.000M-20-3030-2070-40 | 20 | 20pF | 30ppm/30ppm(-20~70) | 40 | ||
| 34 | I 5032 | Crystal, 24MHz, 20pF, SMD | I-F-24.000M-20-3030-2070-30 | 24 | 20pF | 30ppm/30ppm(-20~70) | 30 | ||
| 35 | I 5032 | Crystal, 25MHz, 12pF, SMD | I-F-25.000M-12-3030-4085-50 | 25 | 12pF | 30ppm/30ppm(-40~85) | 50 | ||
| 36 | I 5032 | Crystal, 25 MHz, 14pF, SMD | I-F-25.000M-14-2030-2085-30 | 25 | 14pF | 20ppm/30ppm(-20~85) | 30 | ||
| 37 | I 5032 | Crystal, 27 MHz, 12pF, SMD | I-F-27.000M-12-1010-1060-30 | 27 | 12pF | 10ppm/10ppm(-10~60) | 30 | ||
| 38 | I 5032 | Crystal, 40MHz,15pF, SMD | I-F-40.000M-15-2030-4085-40 | 40 | 15pF | 20ppm/30ppm(-40~85) | 40 | ||
| 39 | I 5032 | Crystal, 40 MHz, 20pF, SMD | I-F-40.000M-20-3050-2070-30 | 40 | 20pF | 30ppm/50ppm(-20~70) | 30 | ||
| 40 | I 5032 | Crystal, 48 MHz, 18pF, SMD | I-F-48.000M-18-3050-2070-30 | 48 | 18pF | 30ppm/50ppm(-20~70) | 30 | ||
| 41 | I 5032 | Crystal, 48 MHz, 20pF, SMD | I-F-48.000M-20-3030-2070-30 | 48 | 20pF | 30ppm/30ppm(-20~70) | 30 | ||

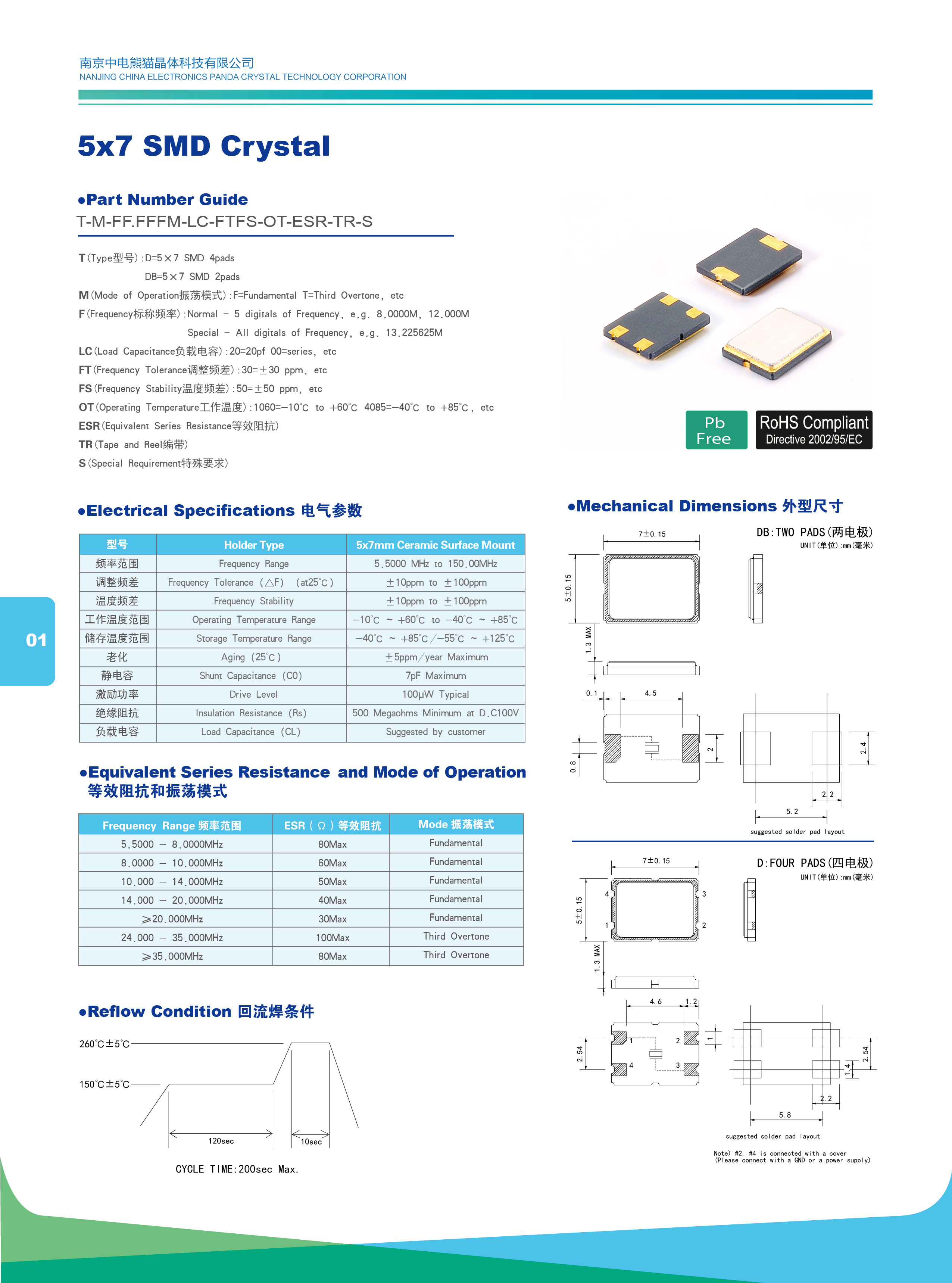

| 42 | D 7050 | |
|
Crystal, 12 MHz, 12pF, SMD | D-F-12.000M-12-3030-2070-50 | 12 | 12pF | 30ppm/30ppm(-20~70) | 50 |
| 43 | D 7050 | Crystal, 20MHz, 12pF, SMD | D-F-20.000M-12-3030-2070-40 | 20 | 12pF | 30ppm/30ppm(-20~70) | 40 | ||
| 44 | D 7050 | Crystal, 24 MHz,12pF, SMD | D-F-24.000M-12-3030-4085-100 | 24 | 12pF | 30ppm/30ppm(-40~85) | 100 | ||

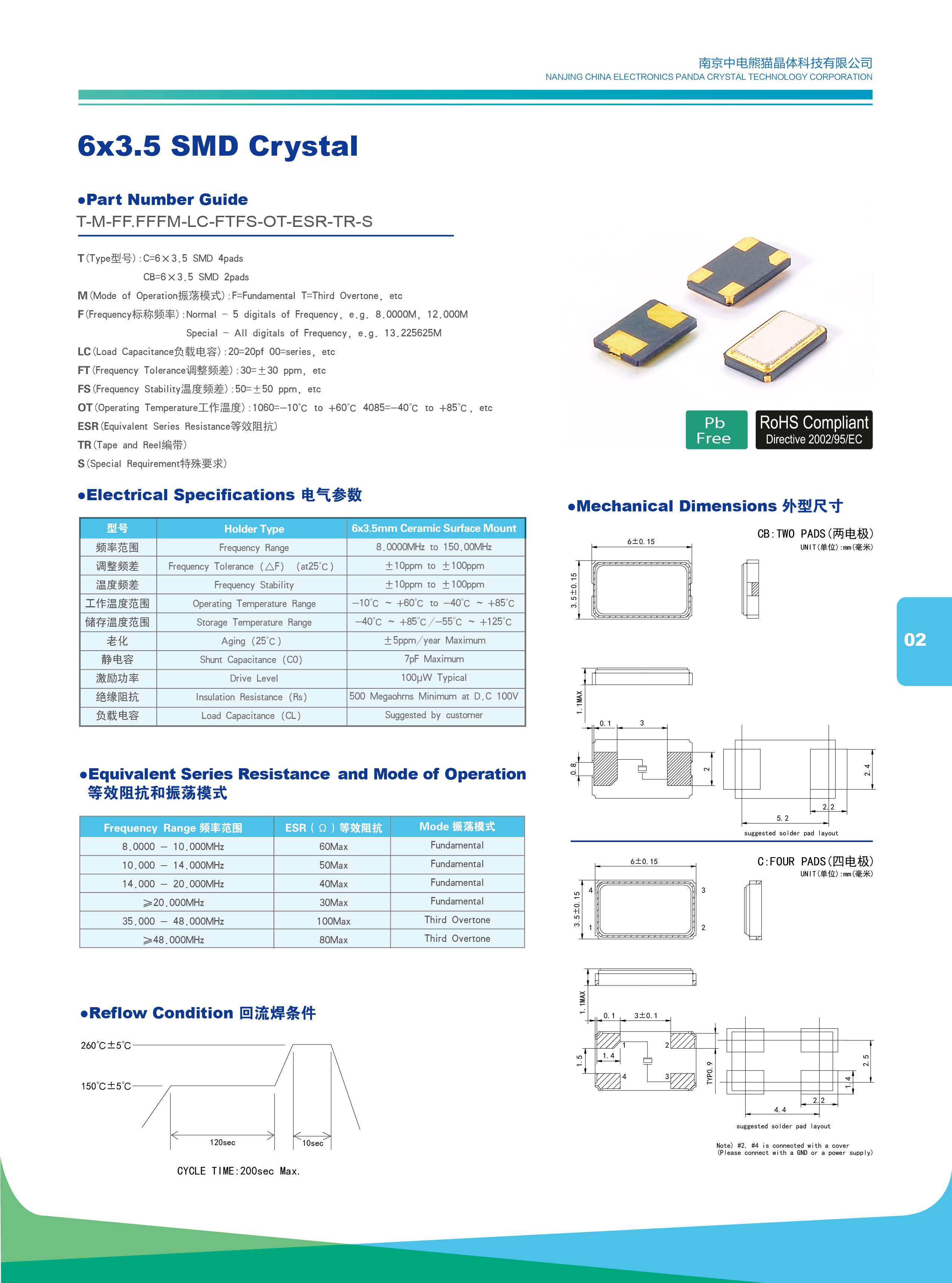

| 45 | C 6035 | |
|
Crystal, 10.78125 MHz, 6pF, SMD | C-F-10.78125M-6-1515-2070-60 | 10.78125 | 6pF | 15ppm/15ppm(-20~70) | 60 |
| 46 | C 6035 | Crystal, 12 MHz, 20pF, SMD | C-F-12.000M-20-3030-1070-50 | 12 | 20pF | 30ppm/30ppm(-10~70) | 50 | ||
| 47 | C 6035 | Crystal, 24MHz, 18pF, SMD | C-F-24.000M-18-1025-4085-30 | 24 | 18pF | 10ppm/25ppm(-40~85) | 30 | ||
| 48 | C 6035 | Crystal, 25 MHz, 20pF, SMD | C-F-25.000M-20-3030-2070-30 | 25 | 20pF | 30ppm/30ppm(-20~70) | 30 | ||
| 49 | C 6035 | Crystal, 27 MHz, 18pF, SMD | C-F-27.000M-18-1010-2070-30 | 27 | 18pF | 10ppm/10ppm(-20~70) | 30 | ||

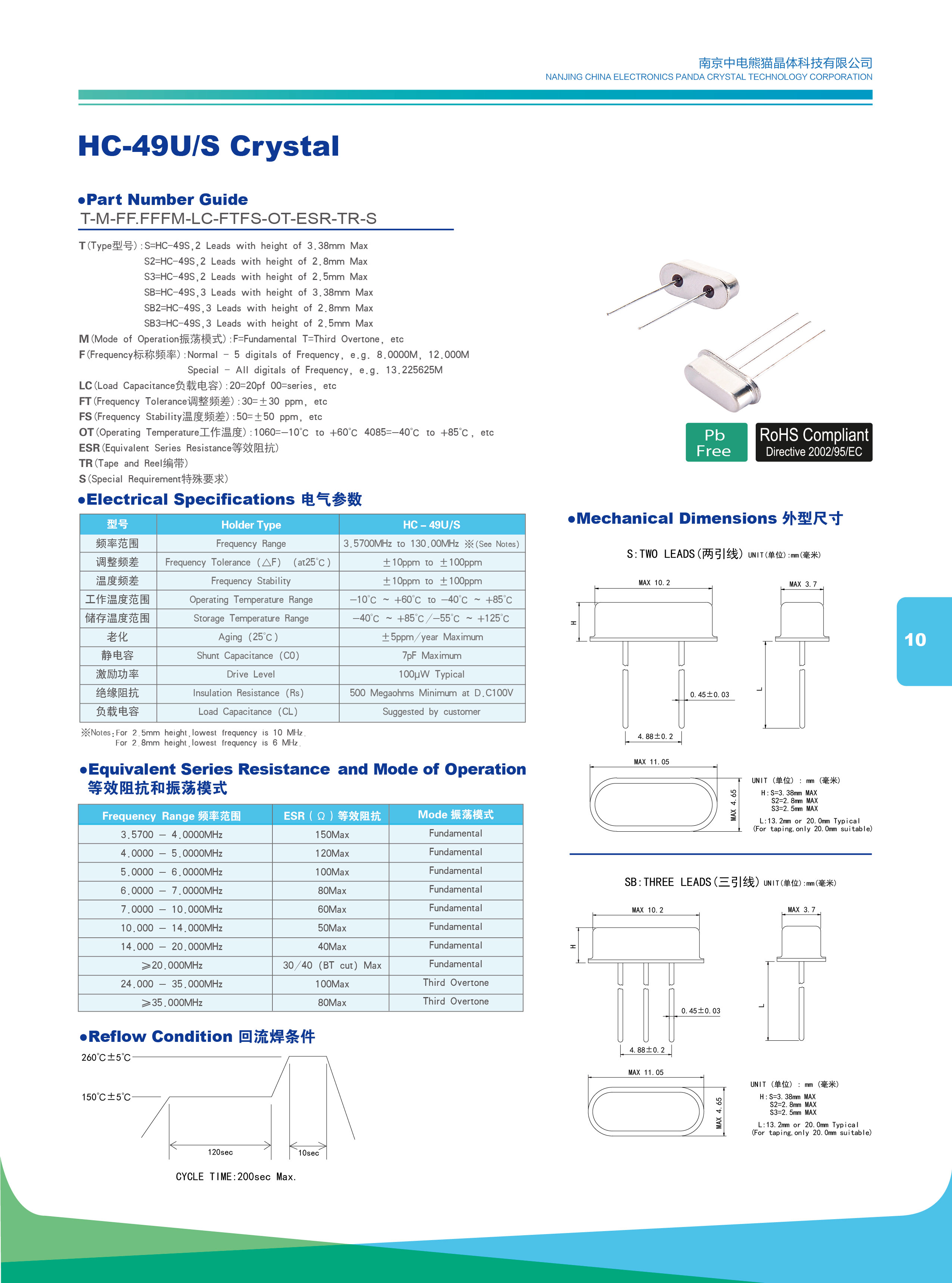

| 50 | S HC-49U/S | |
|
Crystal, 4 MHz, 20pF, DIP | S-F-4.0000M-20-1015-2070-120 | 4 | 20pF | 10ppm/15ppm(-20~70) | 120 |
| 51 | S HC-49U/S | Crystal, 8 MHz, 15pF, DIP | S-F-8.0000M-15-2020-2080-60 | 8 | 15pF | 20ppm/20ppm(-20~80) | 60 | ||
| 52 | S HC-49U/S | Crystal, 10 MHz, 16pF, DIP | S-F-10.000M-16-3050-4085-50 | 10 | 16pF | 30ppm/50ppm(-40~85) | 50 | ||
| 53 | S HC-49U/S | Crystal, 12 MHz, 20pF, DIP | S-F-12.000M-20-3050-4085-50 | 12 | 20pF | 30ppm/50ppm(-40~85) | 50 | ||
| 54 | S HC-49U/S | Crystal, 14.31818 MHz, 32pF, DIP | S-F-14.31818M-32-3030-2085-40 | 14.31818 | 32pF | 30ppm/30ppm(-20~85) | 40 | ||
| 55 | S HC-49U/S | Crystal, 16.9344 MHz, 20pF, DIP | S-F-16.9344M-20-3030-2070-40 | 16.9344 | 20pF | 30ppm/30ppm(-20~70) | 40 | ||
| 56 | S HC-49U/S | Crystal, 25MHz, 20pF, DIP | S-F-25.000M-20-2020-4085-40 | 25 | 20pF | 20ppm/20ppm(-40~85) | 40 | ||

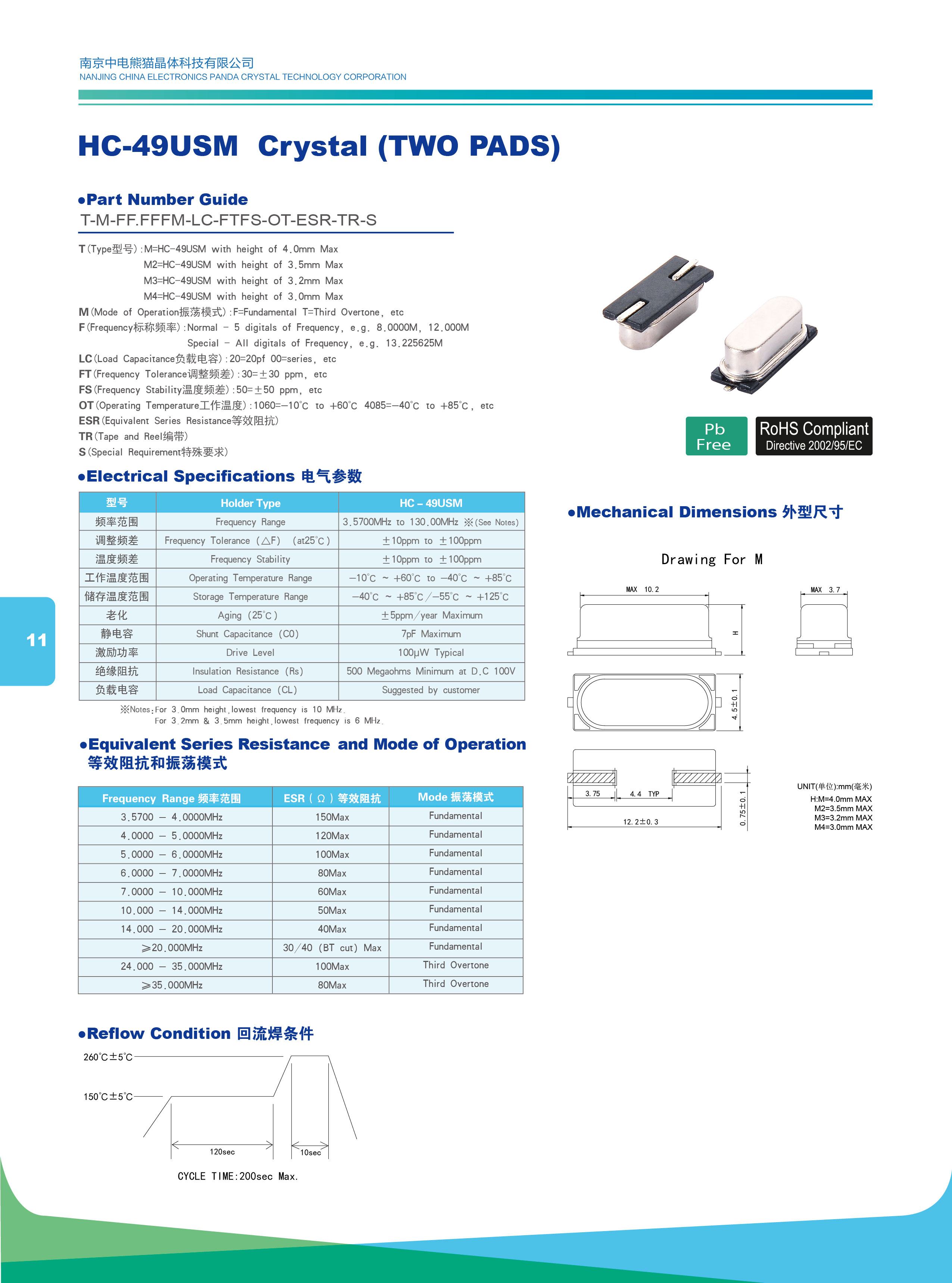

| 57 | M HC-49USM | |
|
Crystal, 4 MHz, 20pF, DIP | M-F-4.0000M-20-2020-2070-120 | 4 | 20pF | 20ppm/20ppm(-20~70) | 120 |
| 58 | M HC-49USM | Crystal, 8 MHz, 20pF, DIP | M-F-8.0000M-20-3050-4085-60 | 8 | 20pF | 30ppm/50ppm(-40~85) | 60 | ||
| 59 | M HC-49USM | Crystal, 12 MHz, 20pF, DIP | M-F-12.000M-20-2020-2070-50 | 12 | 20pF | 20ppm/20ppm(-20~70) | 50 | ||
| 60 | M HC-49USM | Crystal, 16 MHz, 12pF, DIP | M-F-16.000M-12-2030-4085-40 | 16 | 12pF | 20ppm/30ppm(-40~85) | 40 | ||
| 61 | M HC-49USM | Crystal, 16 MHz, 16pF, DIP | M-F-16.000M-16-3050-4085-40 | 16 | 16pF | 30ppm/50ppm(-40~85) | 40 | ||
| 62 | M HC-49USM | Crystal, 20 MHz, 18pF, DIP | M-F-20.000M-18-2528-1060-30 | 20 | 18pF | 25ppm/28ppm(-10~60) | 30 | ||
| 63 | M HC-49USM | Crystal, 20 MHz, 18pF, DIP | M-F-20.000M-18-3050-4085-30 | 20 | 18pF | 30ppm/50ppm(-40~85) | 30 | ||
| 64 | M HC-49USM | Crystal, 24 MHz, 22pF, DIP | M-F-24.000M-22-2020-2070-30 | 24 | 22pF | 20ppm/20ppm(-20~70) | 30 | ||
| 65 | M HC-49USM | Crystal, 25 MHz, 18pF, DIP | M-F-25.000M-18-3050-1070-30 | 25 | 18pF | 30ppm/50ppm(-10~70) | 30 | ||
| 66 | M HC-49USM | Crystal, 25 MHz, 27pF, DIP | M-F-25.000M-27-3030-0070-30 | 25 | 27PF | 30ppm/30ppm(0~70) | 30 |
